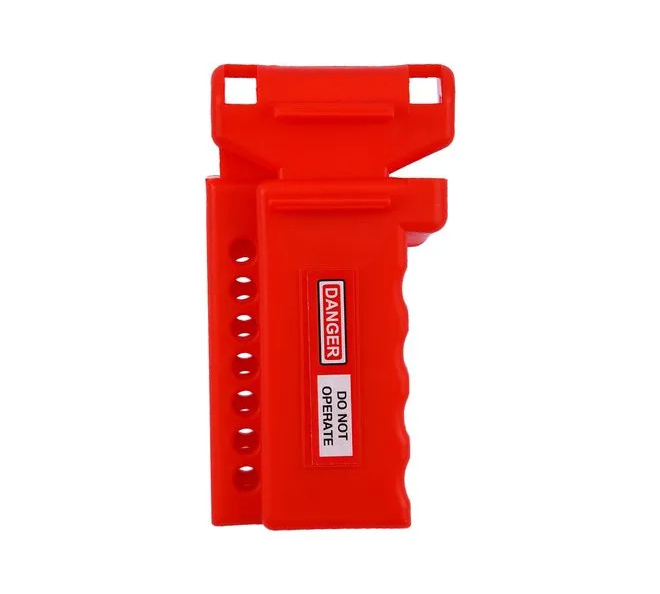

Ball Valve Lockout Device

Get a Price/Quote

MOQ : 100 Units

Ball Valve Lockout Device Specification

Size
Suitable for ball valves from 0.5 inch to 2.5 inch

Application
Ball Valve Lockout for industrial safety to prevent accidental operation of ball valves during maintenance

Security Level
High

Shape
Clamshell (Half-moon)

Finish
Red Coated / Powder Coated

Package Includes
1 Ball Valve Lockout Device (padlock not included)

Operating Temperature Range
-20C to +80C

Corrosion Resistance
Yes

Reusable
Yes

Locking Mechanism
Holes for padlock shackle insertion up to 8 mm diameter

Color
Red

Weight
Approx. 200 g

Compliance
OSHA 1910.147 Standard

Material
Durable Polypropylene (PP)

UV Resistance
Yes

Ball Valve Lockout Device Trade Information

Minimum Order Quantity
100 Units

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Units Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About Ball Valve Lockout Device

Unlock elevated safety with our Popular Ball Valve Lockout Device, crafted from distinguished, durable polypropylene (PP) and finished in a radiant red coating. This device boasts a potent locking mechanism with precise holes for padlock shackles up to 8 mm in diameter, ensuring impeccable security for ball valves ranging from 0.5 to 2.5 inches. Corrosion and UV resistance guarantee longevity, while its clamshell design delivers high security. Reusable, lightweight, and compliant with OSHA 1910.147 standards, grab this reliable lockout solution ideal for preventing accidental valve operations during maintenance across industrial environments. Manufactured and supplied in India, this is an essential tool for safeguarding workplace safety.

Application & Features of Ball Valve Lockout Device

Ball Valve Lockout Devices are straightforward to apply-simply place them over the ball valve handle, close the clamshell unit, and secure with a padlock (not included). This device is favored for its ability to prevent unauthorized access or accidental operation during critical maintenance. Additional features include robust UV and corrosion resistance, a lightweight yet strong build, and a user-friendly design, making it suitable for varied industries focused on impeccable safety standards.

Payment Terms, Sample Policy & Export Markets

For order completion, customers may proceed with payment via standard bank transfer or other accepted methods, with proposal amount clarity before order processing begins. Sample Ball Valve Lockout Devices can be offered for evaluation upon request, subject to company policy. Our main export markets include the Middle East, Africa, Southeast Asia, and Europe. Each order is processed promptly, ensuring high satisfaction and timely global delivery to meet your safety requirements.

FAQ's of Ball Valve Lockout Device:

Q: How do you use the Ball Valve Lockout Device for valve isolation?

A: The device is placed over the handle of the ball valve, then closed to encase the lever, and locked using a padlock through the designated shackle holes to prevent unauthorized access.

Q: What is the operating temperature range for this device?

A: This Ball Valve Lockout Device remains effective in varied settings, with an operating temperature range of -20C to +80C, making it suitable for both cold and hot environments.

Q: When should the Ball Valve Lockout Device be installed?

A: It should be installed during maintenance, servicing, or whenever valve operation needs to be prevented to ensure worker safety and compliance with OSHA 1910.147 standards.

Q: Where can these Ball Valve Lockout Devices be used?

A: They are commonly used in industrial settings such as oil and gas plants, chemical factories, water treatment facilities, and maintenance areas where ball valves control process flows.

Q: What are the main benefits of using this lockout device?

A: The main benefits include high security, prevention of accidental valve operation, compliance with safety standards, and increased overall safety for maintenance personnel.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

More Products in PANEL LOCKOUT Category

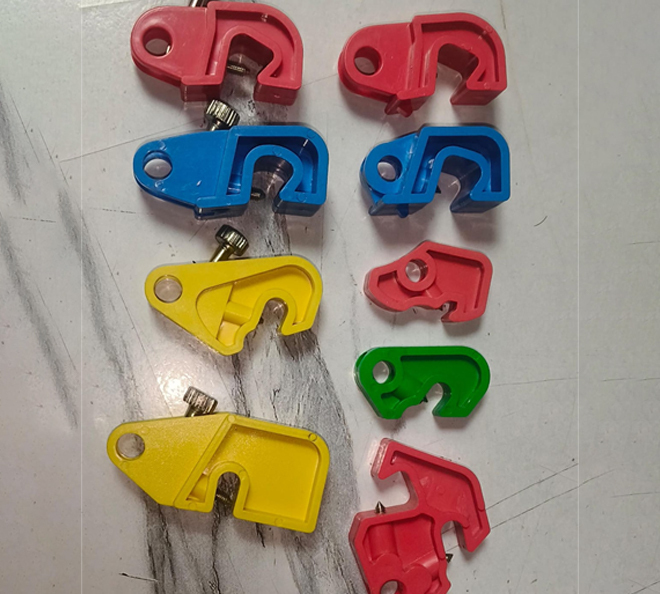

MCB Lockout Devices
